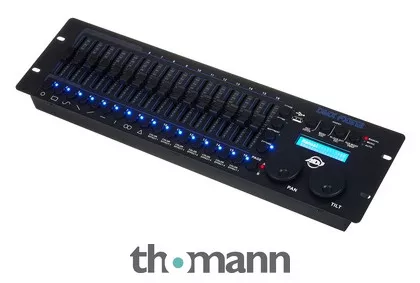

DMX Controller
- 19-inch version for rack mounting
- DMX and RDM capable
- 512 DMX channels
- Control up to 32 smart devices with up to 18 channels each
- 32 Chases with up to 100 steps each, up to 5 chases can be executed simultaneously
- 32 Programmable scenes
- Soft-patchable faders and control wheels
- 16 Integrated effect generators: 9 moving lights and 7 RGB LED lights
- USB-A port for data backup and firmware update
- 16 Channel control faders: special PAN / TILT encoders (user assignable)
- 16 Effects/device selection buttons
- Integrated microphone with adjustable sensitivity (0 % – 100 %)
- With wired digital communications network
- 5-Pin XLR DMX output
- Power supply: DC9V 12V 300mA min (DC9V 1A power supply included)
- Power consumption: DC9V 165mA 1.5W, DC12V 16mA 2W
- Height: 3 U
- Dimensions (L x W x H): 14 x 48 x 69 mm
- Weight: 2.13 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2025
- Item number590874
- Sales Unit1 piece(s)
- Preset Function Yes
- External Storage Yes
- DMX – Universes 1
- max. Channels 512
- Ethernet No
