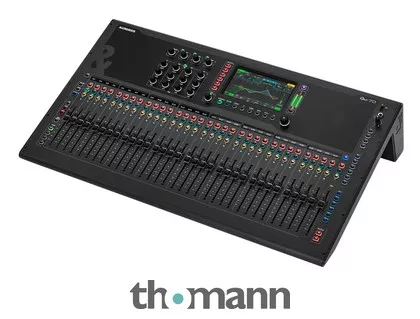

38-Channel Digital Mixer with Dante Interface
- 38 inputs for mixing (32 mono, 2 stereo, USB)
- 32 Mic / Line combo inputs
- Two stereo line inputs
- 7″ capacitive touchscreen
- Remote Apps: MixPad and 4You
- 33 motorised faders
- 20 XLR outputs
- Two TRS outputs
- One AES3 output
- Four channel strip level
- Eight soft keys
- 96 kHz XCVI Core
- 12 mix busses (six mono aux / group, six stereo aux / group)
- Four Matrix busses
- Six FX engines
- Dante (16 x 16)
- Slink port
- USB-A stereo recording/playback
- USB-C interface with 32 x 32 channels
- SD card multitrack recording/playback (16 x 16 at 96 kHz, 32 x 32 at 48 kHz)
- Dimensions (W x H x D): 800 x 476 x 211 mm
- Weight: 16.7 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2025
- Item number617846
- Sales Unit1 piece(s)
- User Interface Physical/remote
- Number of faders 33
- DSP Input channels 32
- Number of Microphone Inputs 32
- Physical outputs 20
- Digital stagebox connection Dante
- Hotspot No
- Multitrack Record Yes
- integratated Player/Rec via USB/SD Multitrack
- 19″ Rackmount No
- DSP Output Channels20
- Busses12
- Number of Mono Line Inputs32
- Number of Stereo Line Inputs2
- EthernetYes
- Soundcard interfaceUSB-C
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor6
- 31 Band EQ12
- Delay InputYes
- Delay OutputYes
- Matrix4
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADINo
- Digital DanteYes
- 110V capableYes
- CaseNo
- Height211 mm
- Width800 mm
- Depth476 mm
- Weight16,7 kg
