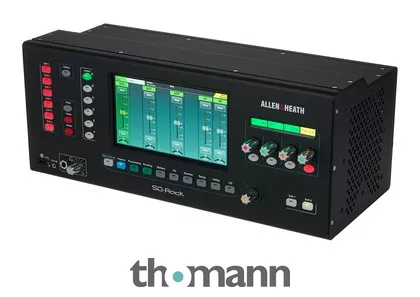

48-Channel Digital Mixing Console
- 96 kHz FPGA core signal processing: latency 0.7 ms
- 7″ Multi-touch screen
- 12 Stereo mixes – perfect for in-ear monitoring setups
- 3 Matrix
- 8 FX engines
- Hands control: 8 Softkeys
- 4 Soft rotaries
- SQ-Rack Apps: SQ-MixPad, SQ4You, SQ-Control
- 128 x 128 SLink connection for remote audio networking
- 64 x 64 channel I/O connection for audio networking
- 32 x 32 channel USB audio interface
- SQ-Drive for direct recording to USB stick
- 17 Mono XLR inputs: 1 Talkback
- 2x 6.3 mm TRS jack stereo inputs
- 3.5 mm Stereo input
- 1 XLR Talkback mic input
- 6.3 mm footswitch
- 12 XLR outputs
- 2 x 6.3 mm TRS outputs
- AES XLR output
- 6.3 mm headphone output
- I/O port for option expansion cards: Dante/Madi/Waves/SLink
- Multi-position 19″ rack ears
- 4 U installation height
- Dimensions: 430 x 214 x 173 mm
- Weight: 5.8 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2025
- Item number608992
- Sales Unit1 piece(s)
- Max.number of input channels 17
- Microphone Inputs 17
- Analog Line Inputs 17
- Analog Line Outputs 12
- Analog in/ out with plug-in card expandable No
- Digital Inputs USB
- Digital Outputs AES, USB
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader No
- Computer interface USB, Ethernet
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders0
- DSP Input channels48
- DSP Output Channels12
- Busses12
- Number of Microphone Inputs17
- Number of Mono Line Inputs4
- Number of Stereo Line Inputs3
- Physical outputs12
- Digital stagebox connectionS-Link
- EthernetEthernet
- HotspotNo
- Multitrack RecordYes
- Special Features7″ Touchscreen
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDMultitrack
- Recorder FormatWAV/MP3
- RTAYes
- FX Processor8
- 31 Band EQ13
- Delay InputYes
- Delay OutputYes
- Matrix3
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseNo
- 19″ RackmountYes
- Height173 mm
- Width430 mm
- Depth214 mm
- Weight5,8 kg
