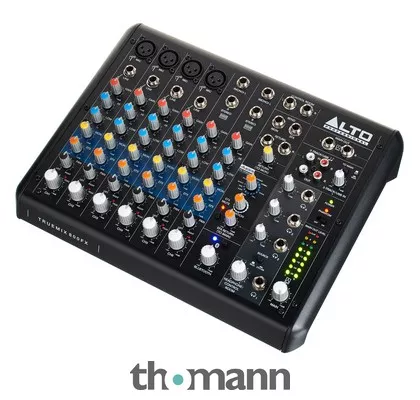

6-Channel Analog Mixer with USB Audio Interface
- 4 Microphone/line inputs: XLR/6.3 mm TRS jack with 48 V phantom power
- Line inputs (mono/stereo): 2 x 6.3 mm TRS jack
- 2-Band EQ per channel
- Integrated Alesis multi-effects unit (16 effects)
- Integrated Bluetooth receiver
- 2-Track in/out RCA/USB
- FX send output: 6.3 mm TRS jack
- Return input: 2 x 6.3 mm jack
- Monitor send output: 6.3 mm TRS jack
- Control room output: 2 x 6.3 mm TRS jack
- Master output: 6.3 mm TRS jack
- 4 Headphone output: 6.3 mm jack
- Dimensions (W x H x D): 305 x 79 x 239 mm
- Weight: 2.1 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2023
- Item number571510
- Sales Unit1 piece(s)
- Simultaneous channels 6
- Mic-In 4
- Mono Line-in 6
- Stereo-In 2
- Hi-Z Input 0
- Phantom Power 48 V
- Master Out 6,3 mm unbal.
- Aux Ways 1
- max. Pre Aux Channels 1
- PC Interface USB-B
- Audio Interface Input 2
- Audio Interface Output 2
- Multitrack-Recording No
- Rec Out (Analog) Yes
- Low Cut No
- Inserts Yes
- Direct Out No
- Parametric No
- Compressor No
- Panorama Yes
- PFL No
- FX Processor 1
- USB Playback No
- Bluetooth Playback Yes
- Lamp connection No
- Footswitch No
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount No
- Width305 mm
- Height79 mm
- Weight2,04 kg
- Parallel usable Channels6
- Mic Ins4
- Mono Line Ins6
- Stereo Ins2
- Number of Pre Aux max.1
- USB/SD Direct RecordNo
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayYes
- Lamp ConnectorNo
- Foot SwitchNo
- RackmountNo
