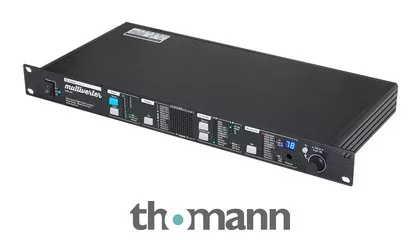

Muti-Format Converter and Splitter
- Recording of any signal source
- Universal interface in the OB van
- 64 x 64 Channel PC interface via Dante Virtual Soundcard
- Operation of various mixing consoles with diverse hardware from different manufacturers
- Low-latency transmission of 64×64 audio channels via normal Ethernet network
- Channel-based routing (crossbar) on 704 x 704 channels
- Integration of ‘legacy’ devices
- Integrated remote control via web browser via USB, Telnet and USB-C
- Integrated control of all MIDAS and Behringer stageboxes via web interface (Gain/Phantom)
- 16 Presets Store/Recall
- Headphone amplifier: Each input signal/channel can be listened to
- Test tone generator for easy troubleshooting in complex setups
- Triple redundant power supply (2x 90-240VAC, 1x 9-18VDC)
- Can be operated mains-independently from a camera battery pack (4-pin XLR connector)
- Sample rate converter 128 x 128 channels optional (not included – e.g. for MIDAS 96k consoles to Dante 48 kHz)
- Format: 19″ / 1 U
Connections:
- 4x ADAT input and output (32 x 32 ch @ FS1)
- 2x AES3 input and output on DB25 (16 x 16 ch)
- 2x MADI SFP
- MADI coaxial
- MADI-TP (max. 2 Ports)
- AES50 (max. 2 Ports)
- Dante/AES67 (2 ports/integrated switch)
- 2x TRS MIDI
- Word clock input and output
- RS485
- Expansion interface up to 192 channels
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number567955
- Sales Unit1 piece(s)
- Amount Of Channels 128
- AD Conversion No
- DA Conversion No
- Max. Resolution Rate in Bits 24 bit
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor Yes
- AES/EBU Connector Yes
- ADAT Yes
- Word clock Yes
- Number of analog inputs 0
- Number of Analog Outputs 0
- Headphone connection Yes
- Special FeaturesDante, MADI SPF
