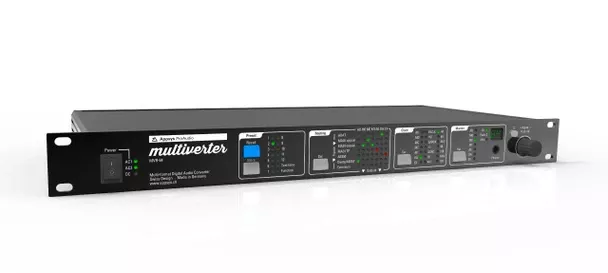

MVR-64 multiverter mkII
The universal format converter: Everything in 1U!
For all your digital audio needs:
This unique piece of hardware is able to convert between an impressive selection of digital interfaces – any to any, all at once.
Supported Audio Interfaces
- ADAT (8x), SPDIF/AES3 optical
- MADI optical
- MADI coaxial
- MADI-TP (up to 2 ports)
- AES50 (up to 2 ports)
- Dante / AES67
- and many more via breakout boxes (currently planned: Waves Soundgrid, AVB, AES3)
Key features
- 64×64 channels on each interface with channel-wise routing/splitting between interfaces
- Integrated headphone amp
- Asynchronous sample rate conversion (plug-in module)
- Fully remote-controllable via web, telnet and USB. Run Live Demo
- Extensible to future interfaces via break-out boxes
What the multiverter can do for you:
- Interface your recording gear to any signal source
- Make your production truck or OB van compatible to anything
- Use your ethernet port as 64×64 recording interface with the Dante® Virtual Soundcard technology
- Sample-rate convert between any interfaces using the SRC-64 plugin module
- Send and receive low-latency, 64×64 audio over your standard ethernet network
- Bring your legacy gear up to date
…and anything else you can imagine!
Audio Interfaces
- ADAT (8x), SPDIF/AES3 optical capable
- MADI optical
- MADI coaxial
- MADI-TP (up to two ports)
- AES50 (up to two ports)
- Dante/AES67 (two ports/integrated switch)
- Extension port for breakout-box connection – see Roadmap
Clocking Options
- Supports 32…192 kHz operation
- Wordclock input and output (BNC)
- Clock master can be any incoming audio signal, or BNC, or an high-quality internal clock
- MADI and ADAT 96k frame and S/MUX operation supported
- Asynchronous Sample Rate Conversion (64×64 channels) supported using the SRC-64 plugin module
Remote Control Interfaces
- Integrated web server Run Live Demo
- Integrated telnet server
- USB UART
Other things to mention
- Preset store/recall (12 different setups)
- Headphone amplifier to monitor any incoming signal
- Test tone generator simplifies troubleshooting of complex setups
- Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
- Can be powered alone from industry standard 4-pin XLR plug battery packs
- MIDI embedding/de-embedding from MIDI jacks into MADI streams (RME-compliant)
- Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
- Prepared for Headamp remote control (Yamaha, Behringer, MIDAS)
