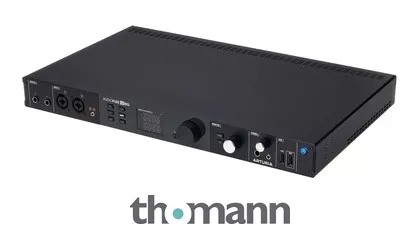

USB Audio Interface with USB-C Port
- Combines connectivity with flexible configuration options
- To connect a full synth studio, complex live audio routing, DAW recording and more
- 24-bit / 192kHz
- 16 analogue input channels and 12 analogue output channels
- Up to 16 channels of immersive audio monitoring (via firmware update)
- Separate front stereo input (input 3/4) for connecting tablets, smartphones or synths
- Dual ADAT I/O ports with word clock synchronisation
- Low Latency DSP Mixer
- Standalone audio and MIDI functionality
- Dedicated monitor volume control with mute and custom buttons to control studio monitors
- Custom buttons configurable (mono, dim or alternate speaker)
- Headphone volume control
- Reamp function
- Pad switch for all line inputs
- Colour display with rotary and push encoders
- Six direct access buttons and Back/Home buttons for easy navigation
- USB hub functionality with front and rear USB ports for connecting peripherals
- Load and recall presets for quick setup (e.g. studio, live performance, streaming, etc.)
- Configurable for desktop or rackmount use
- Format: 19″/ 1U
- Dimensions (W x H x D): 440 x 45 x 260 mm
- Weight: Approx. 4.5 kg
- Includes AudioFuse Creative Suite
- Contents of the delivery: Quick start guide, power cable, USB-C to USB-C cable, USB-C to USB-A cable, registration card as well as detachable rack ears for rack mounting
Analogue inputs:
- Two Mic / Line / Instrument combo inputs: XLR / 6.3 mm jack
- 16 individually switchable line inputs (+4 dBu / -10 dBv): 6.3 mm TRS jack
- One stereo line input: 3.5 mm jack
Analogue outputs:
- Eight DC-coupled line outputs: 6.3 mm TRS jack
- Two monitor outputs: 6.3 mm TRS jack – front mirrored: Outputs 3 and 4
- One headphone output: 6.3 mm TRS jack
- One headphone output: 3.5 mm jack
Digital inputs/outputs:
- Dual ADAT I/O for up to 16 channels I/O at 48 kHz: 2x input / 2x output
- Word Clock I/O: BNC
- One MIDI-In/Out/Thru: 5-pin DIN
- One MIDI Clock-Out: 3.5 mm jack
- One MIDI host USB port on the front for USB MIDI controllers
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number577287
- Sales Unit1 piece(s)
- Recording / Playback Channels 16×12
- Number of Mic Inputs 2
- Number of Line Inputs 18
- Instrument Inputs 16
- Number of Line Outs 12
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface Yes
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 440 mm
- Depth 260 mm
- Height 45 mm
- Connection Format USB port Type C, 3x Type A
- Amount Of Channels16
- AD ConversionYes
- DA ConversionYes
- ADATYes
- Word clockYes
- Number of analog inputs16
- Number of Analog Outputs12
- Headphone connectionYes
- Special Features16 analog Input Channels and 12 analog Output Channels; ADAT In / Out; MIDI In / Thru / Out
- Included in deliveryPower Supply, USB-C Cable, USB-A to USB-C Cable, Rack Mount Accessories
- Zero latency monitoringYes
