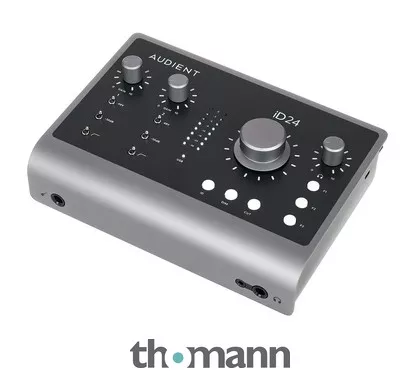

10x In/14x Out Audio Interface
- 2 Class-A Audient Console microphone preamps
- 1 Discrete JFET instrument input
- Main and Alto speaker outputs
- Powerful headphone amplifier with independent DAC
- 2 Headphone outputs: 1x 6.3 mm jack, 1x 3.5 mm jack
- 1 ADAT input & output
- 2 Fully balanced inserts for input 1 and 2
- DSP mixer with extremely low latency
- Audio loop-back
- 3 User-defined function keys
- Dim and cut controls
- +48V phantom power, pad and HPF switches
- Conversion: 24bit/96kHz
- Word clock output
- Dimensions: 198 x 66 x 134 mm
- Weight: 1.15 kg
- Incl. comprehensive Audient ARC download software package (including Steinberg Cubase LE + Cubasis LE 2)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2023
- Item number560993
- Sales Unit1 piece(s)
- Recording / Playback Channels 10×14
- Number of Mic Inputs 2
- Number of Line Inputs 2
- Instrument Inputs 1
- Number of Line Outs 4
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock 1xOut
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 225 mm
- Depth 180 mm
- Height 60 mm
- Connection Format USB port Type C
- Included in deliveryUSB-C Cable
- Zero latency monitoringYes
