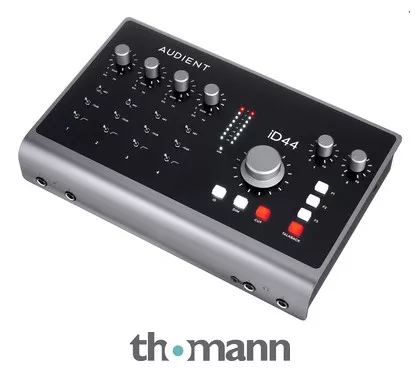

USB 2.0 Desktop Audio Interface
- 20 In / 24 Out
- USB-C connector
- 4 Class-A Audient console microphone preamps
- Gain: 60 dB
- 2 ADAT inputs and outputs for digital expansion
- 24 Bit / 96 kHz
- 2 Discrete JFET instrument inputs
- 2 Balanced inserts
- 2 Independent stereo headphone outputs
- Main and alt speaker outputs
- 3 User-defined function buttons
- Talkback, dim and cut buttons
- DSP mixer with intuitive software
- Word clock output
- Standalone mode
- Dimensions (W x D x H): 276 x 174 x 69 mm
- Weight: 2 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2022
- Item number544989
- Sales Unit1 piece(s)
- Recording / Playback Channels 20×20
- Number of Mic Inputs 4
- Number of Line Inputs 4
- Instrument Inputs 2
- Number of Line Outs 4
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 2
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock 1xOut
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 276 mm
- Depth 174 mm
- Height 69 mm
- Connection Format USB port Type C
- Number Of Monitoring Outputs (Stereo)2
- Headphone connection2
- Talkback FunctionYes
- Built-in AD / DA converterYes
- Level MeterYes
- Number of 2 track inputs0
- DesignDesktop
- Dimensions276 x 174 x 69 mm
- Included in deliveryPower Supply, USB-C Cable, USB-A to USB-C Cable
- Zero latency monitoringYes
