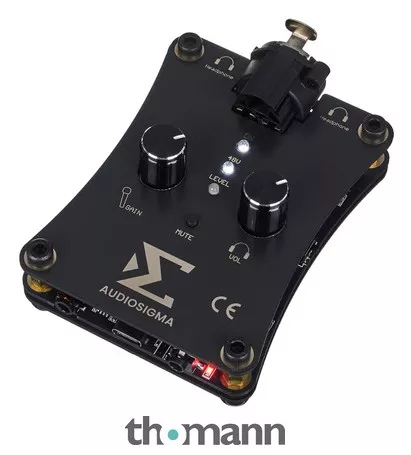

Compact Audio Interface
- With DSP functions
- Portable interface solution tailored to mobile speakers, podcasters, reporters or journalists
- Provides built-in denoiser, equaliser, limiter and depop DSP algorithms for broadcast-ready recordings “on the fly”
- Loopback function allows for the effortless integration of additional content such as background music, video sound and much more
- XLR connector with 48 V phantom power for hassle-free use of all microphones
- Lock switch locks the DSP functions to protect against incorrect operation during recording
- Works with a wide range of mobile devices running iOS and Android, as well as MacOS, Windows and Linux systems
- Input: XLR balanced
- Aux input: 3.5 mm stereo mini jack
- Combined headphone/monitor output: 3.5 mm stereo mini jack
- Headphone output: 3.5 mm stereo mini jack
- USB-C connector
- Includes padded bag, 0.6 m USB-C cable and USB-A to USB-C adapter
Technical data:
- Pre-amplification: 70.5 dB
- Signal-to-noise ratio: 115 dB A-weighting
- Dynamic range: 98 dB A-weighting
- THD: <0.01% at 25 mV RMS
- Input impedance: 3 kOhm
- Output impedance: 1 ohm
- Output level: 16.2 dBu
- Output power: 400 W
- Power consumption: 0.22 – 0.42 A
- Dimensions (L x W x H): 94 x 70 x 35 mm
- Weight: 117 g
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2025
- Item number622811
- Sales Unit1 piece(s)
- Recording / Playback Channels 2×2
- Number of Mic Inputs 1
- Number of Line Inputs 2
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 48 kHz
- Max. Resolution Rate in Bits 16 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 70 mm
- Depth 94 mm
- Height 35 mm
- Connection Format USB port Type C
- Included in deliveryUSB-C Cable, USB-A to USB-C Adaptor, Gigbag
- Zero latency monitoringYes
