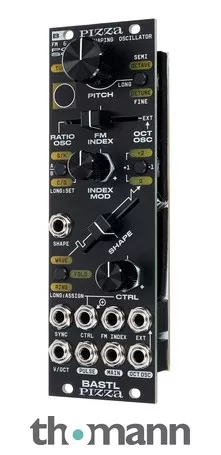

Eurorack Module
- Digital FM & Waveshape oscillator
- Pitch, FM index and shape controls
- CV Inputs for FM index and shape, each with bipolar attenuator
- 3 Internal oscillators
- Main oscillator with phase modulation (FM), wavefolder and ring modulation
- Octave oscillator with separate output and waveshaper with crossfader between square, sine and sawtooth waveforms
- Ratio oscillator for FM with separate waveshaper
- FM index adjustable via crossfader between octave and ratio oscillator
- Sync input
- Pitch input (V/oct.) with automatic calibration and quantisation
- Bipolar CTRL control with CV input
- Programmable to various parameters
- Power consumption: 90mA (+12V) / 20mA (-12V)
- Width: 8 U
- Depth: 24 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2023
- Item number563215
- Sales Unit1 piece(s)
- Analogue No
- Digital Yes
- Width 8 TE / HP
