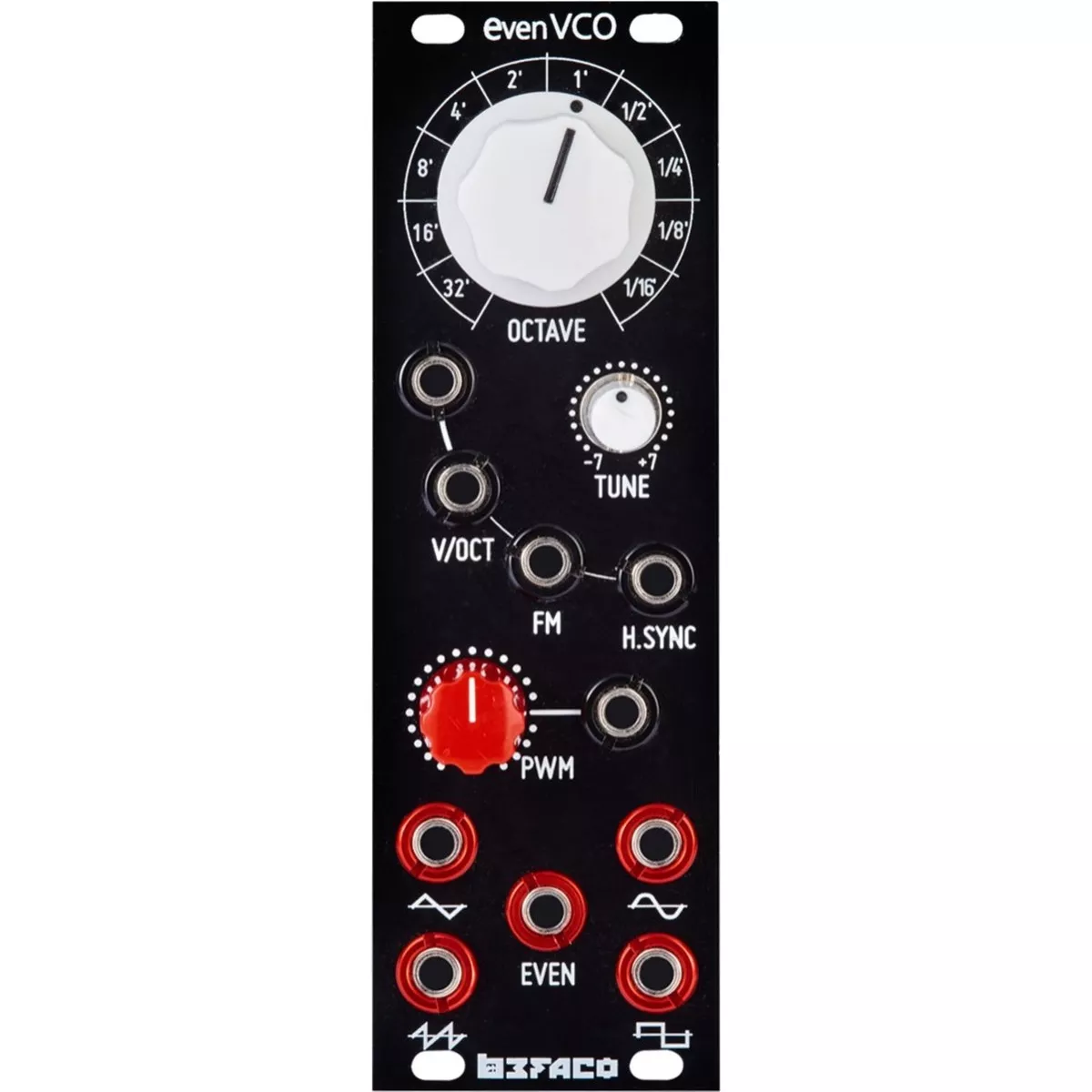

The EVEN VCO is an voltage controlled oscillator which offers stability even in the case of power supply fluctuations.
FEATURES
- The EVEN VCO features a 10 position octave selector switch (C0C9) and is able to track with 1 cent precision between C07, 4 cents through C8 and 13 cents through C9.
- Outputs:
Triangle
Ramp
PWM
Sine
Even (waveshape with emphasis on even harmonics)
Inputs:
Hard sync. This forces the core to reset in the event of a phase change at the input.
V/oct. Two inputs for pitch control summed to the main octave selector and the tone control.
FM. Linear pitch control.
PWM CV. Pulse width control summed to the potentiometer.
