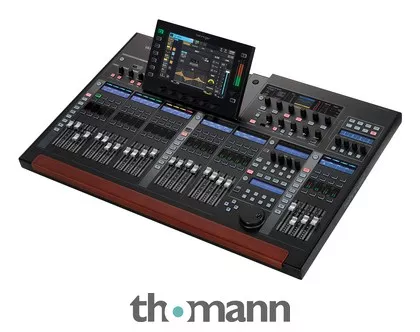

48-Channel Full Stereo Digital Mixer
- New routing concept by focusing on sources instead of channels
- Fully compatible with Behringer X32/Midas M32 consoles and stageboxes
- Vintage emulations of EQs, compressors and gates available in each of the 40 stereo inputs
- 40 stereo inputs
- Eight stereo aux inputs
- 28 Buses: 16 stereo aux, 8 stereo matrices, 4 stereo mains
- 24 faders in 3 fully programmable sections
- 10″ multi-touch display with adjustable angle
- Programmable custom control section
- Eight midas Pro microphone preamp
- Eight analogue Midas line outputs
- Eight aux inputs
- Sixux outputs and two monitor outputs: 6.3 mm jack balanced mono
- Two headphone outputs
- Three AES50 ports: 48 x 48 channels per port – cable length up to 80 metres
- MIDI I/O
- Two programmable GPIOs
- 48 x 48 channel USB interface
- Expansion slot including WING-LIVE card
- 64 x 64 Channel SD recorder / player
- Additional cards (Dante, MADI, Soundgrid) optionally available
- StageCONNECT 32 channel port for personal monitoring
- 16 FX Engines: 8 premium and 8 standard
- Six band EQ in the inputs
- Eight band EQ in the outputs
- Dimensions (H x W x D): 201 x 870 x 575 mm
- Weight: 24 kg
- Colour: Black
- Including dust cover
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2024
- Item number599923
- Sales Unit1 piece(s)
- Max.number of input channels 48
- Microphone Inputs 8
- Analog Line Inputs 0
- Analog Line Outputs 8
- Analog in/ out with plug-in card expandable No
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB
- MIDI-interface Yes
- User InterfacePhysical/remote
- Number of faders24
- DSP Input channels48
- DSP Output Channels16
- Busses28
- Number of Microphone Inputs8
- Number of Mono Line Inputs8
- Number of Stereo Line Inputs0
- Physical outputs16
- Digital stagebox connectionAES50
- EthernetEthernet
- HotspotNo
- Special FeaturesNone
- Multitrack RecordYes
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor16
- 31 Band EQ16
- Delay InputYes
- Delay OutputYes
- Matrix8
- DCA/VCA Groups16
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADINo
- Digital DanteOptional
- 110V capableYes
- CaseOptional
- 19″ RackmountNo
- Height201 mm
- Width870 mm
- Depth575 mm
- Weight24 kg
