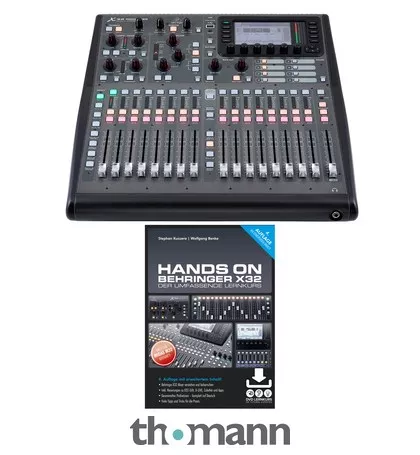

Bundle offer comprising
Behringer X32 Producer
Digital Mixer
- 16 XLR Mic/Line inputs
- 8 Stereo FX Returns
- 16 Mix busses
- 6 Matrix buses with insert
- 6 Mute groups
- 8 DCA groups
- 8 XLR outputs
- 6 Aux In via 6.3 mm jack (optionally 2 via RCA)
- 6 Aux Out via 6.3 mm jack (optionally 2 via RCA)
- Adjustable headphone connection
- 32-in/32-out USB Audio Interface
- Talkback microphone input (XLR)
- 100 mm motor fader
- 5″ TFT colour display
- 4-Band fully parametric EQ per channel
- Adjustable delays in all channels
- Virtual effects rack with 8 FX slots
- Built-in stereo USB recorder
- Remote control via Ethernet
- Compatible with Behringer P-16 Personal Monitoring System
- Full MIDI implementation
- Dimensions (W x D x H): 490 x 506 x 163 mm
- Weight: 11.4 kg
- Includes 19″ rackmount
- Suitable case: Art. 326942 (not included)
- Suitable expansion cards: Dante: Art.334096, Madi: Art.337831 (all not included in the scope of delivery)
Tutorial Experts Hands On Behringer X32
Video Tutorial (Download)
- German-language, interactive video learning course for PC, Mac and tablet
- Detailed training for Behringer X32 and Midas M32
- 12 Hours of total playtime
- System requirements: Win7 or later / Mac OSX 10.6 or later, 1.6 GHz CPU, 0.5 GB RAM, 1920 x 1080 monitor, sound card
Contents:
- Introduction and overview
- All functions explained step by step
- Using the X32 Edit software
- The channel strips in detail
- Use of bus sends
- Create monitor mixes
- Insert and send effects
- Use and create effect presets
- Integrate external effects
- Summarizing channels
- Scribble strip configuration
- Use of scenes
- Snippets and cue lists
- Introduction of hardware extensions
- Routing between X32 and computer
- Practical examples for different fields of application
- Combination with Waves-Multirack
- Practical examples such as virtual soundcheck
- Theatre use, and more
- Combination with DP48 and P16-M monitoring systems
- Notes on the newest firmware and additions
- DAW remote control including individual customisation
- Control via tablets and use of alternative apps
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2021
- Item number531596
- Sales Unit1 piece(s)
- Max.number of input channels 32
- Microphone Inputs 16
- Analog Line Inputs 16
- Analog Line Outputs 8
- Analog in/ out with plug-in card expandable Yes
- Digital Inputs None
- Digital Outputs AES
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface Yes
- User InterfacePhysical/remote
- Number of faders17
- DSP Input channels32
- DSP Output Channels24
- Busses16
- Number of Microphone Inputs16
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs0
- Physical outputs14
- Digital stagebox connectionAES50
- EthernetEthernet
- HotspotNo
- Multitrack RecordYes
- Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- RTAYes
- FX Processor8
- 31 Band EQ8
- Delay InputYes
- Delay OutputYes
- Matrix6
- DCA/VCA Groups8
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATOptional
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseIncluded
- 19″ RackmountYes
- Height163 mm
- Width490 mm
- Depth506 mm
- Weight11,4 kg
