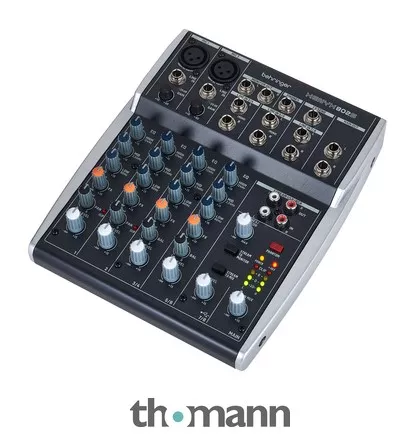

8-Channel Analogue Mixer with USB Streaming Interface
- USB-B connector
- Two microphone inputs with 3-band EQ: XLR
- Two mono line inputs: 6.3 mm jack
- Three stereo line inputs with 3-band EQ: 6.3 mm jack
- 48 volt phantom power
- One FX send: 6.3 mm jack
- Monitor output: Unbalanced 6.3 mm jack
- Master output: Balanced 6.3 mm jack
- Streaming/2Track In/Out: RCA
- Phone output: 6.3 mm stereo jack
- External power supply
- Interior dimensions (W x D x H): 189 x 220 x 47 mm
- Weight: 1.6 kg
- Suitable case: Art. 267777 (not included)
- Suitable bag: Art. 481190 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number560494
- Sales Unit1 piece(s)
- Parallel usable Channels 5
- Mic Ins 2
- Stereo Ins 3
- Master Out 6,3 mm bal.
- Number of Pre Aux max. 0
- PC Interface USB-B
- Multitrack Recording No
- USB/SD Direct Record No
- PFL No
- Effect Processor 0
- USB Play No
- Bluetooth Play No
- Foot Switch No
- Matrix Mixer No
- Zones 0
- 19″ Rackmount No
- Width189 mm
- Depth220 mm
- Height47 mm
- Weight1,6 kg
- Mono Line Ins2
- Hi-Z Input0
- Phantom Power48 V
- Aux Ways1
- Audio Interface Input2
- Audio Interface Output2
- Rec Out (Analog)Yes
- PanoramaYes
- Lamp ConnectorNo
- RackmountNo
