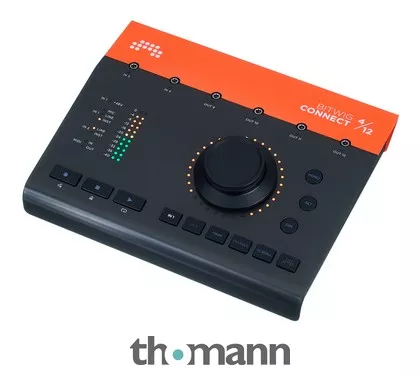

USB Audio Interface
- With CV and Bitwig integration
- 24 Bit / 192 kHz
- Bitwig integration for transport functions, precise parameter customisation and writing automations
- In Bitwig mode, the main dial can be used to control all parameters over which the mouse pointer is currently positioned, including parameter lock
- Monitor controller function
- Powered via USB
- Class compliant, compatible with PC, Mac and Linux
- Dimensions (W x H x D): 205 x 52 x 163 mm
- Weight: 1.48 kg
- Includes USB-C cable, USB-A adapter, 2x 3.5 mm mini-jack cable, 2x mini-jack to MIDI cable, Bitwig Studio Essentials and Bitwig Circle membership
Connections:
- Microphone/line/instrument input with 48 V phantom power: XLR / 6.3 mm TRS combo jack
- Line/instrument input: 6.3 mm TRS jack
- Line inputs: 2 x 6.3 mm TRS jack
- CV inputs: 2 x 3.5 mm TRS mini jack
- Line outputs: 6 x 6.3 mm jack
- CV outputs: 4 x 3.5 mm TRS mini jack
- Headphone output: 6.3 mm TRS jack
- MIDI input and output: 3.5 mm TRS mini jack
- USB-C port
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2025
- Item number609877
- Sales Unit1 piece(s)
- Recording / Playback Channels 4/12
- Number of Mic Inputs 1
- Number of Line Inputs 4
- Instrument Inputs 2
- Number of Line Outs 6
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors CV in / out
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 205 mm
- Depth 163 mm
- Height 52 mm
- Connection Format USB port Type C
- Included in deliveryUSB-C Cable, USB-A to USB-C Adaptor, 2x 3.5mm TS Cables, 2x 3,5mm TRS to MIDI DIN-Adaptor
- Zero latency monitoringYes
