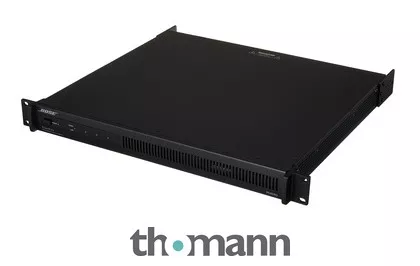

4-Channel Dante Power Amplifier
- Power: 4x 100 W (THD + N <0,04%, 1 kHz, 4-8 Ohm, 70 / 100V)
- Power Share Technology: 1x 400 W (4-8 Ohm, 70/100V)
- Gain: 38 dB
- Frequency response: 20 – 20,000 Hz (+/- 1 dB @ 1 W)
- Crosstalk:> 85 dB @ 1 kHz,> 65 dB @ 20 kHz
- Dynamic range: 100 dB (at rated power, A-weighted)
- Audio latency: <1 ms
- Integrated DSP with matrix mixer
- Loudspeaker EQ
- Real-Time 9-Band PEQ
- Vpeak/Vrms Limiters
- Delay
- Band Pass
- Mute/Output Polarity Inversion
- Analogue inputs: 4 channel balanced Euroblock
- Analogue outputs: 4 channel Euroblock
- Digital Dante inputs: 4 channel RJ-45
- Impedance: 20 kOhm
- Max. Level: 20 dBu
- Sensitivity: 4 / 12 dBu
- Format: 19″ / 1U
- Dimensions (W x H x D): 483 x 44 x 414 mm
- Weight: 6.4 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2023
- Item number571403
- Sales Unit1 piece(s)
- Channels 4
- Output per channel at 100 V 100 W
- Output per channel at 4 Ohms 100 W
- Rack Units 1 U
- DSP / Crossover Yes
- Convection cooling No
- ClassClass D
- Link OutNo
- Output Phoenix ClampsYes
- Bridged ModeYes
- Temperature controlled fanYes
- Width483 mm
- Depth44 mm
- Height414 mm
- Weight6,4 kg
