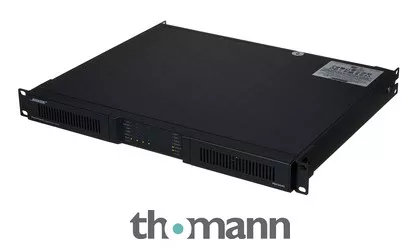

Four-channel installation power amplifier
- Maximum peak power, balanced: 800 W at 2 Ohm / 600 W at 4 Ohm, 8 Ohm, 70 V, 100 V
- Maximum peak power, unbalanced: 2200 W at 2 Ohm, 4 Ohm, 8 Ohm, 70 V, 100 V
- Rated power, unbalanced: 1100 W at 2 Ohm / 1100 W at 4 Ohm in 70 V mode / 1100 W at 8 Ohm in 100 V mode / 1100 W at 70 V, 100 V
- Frequency response: 20 – 20,000 Hz (±1.0 dB)
- Class D amplifier
- Dante interface
- Built-in DSP
- Dynamic power‑sharing supports both symmetrical and asymmetrical distribution
- Managed using Bose ControlSpace Designer app
- Temperature-controlled fan
- 6-pin Euroblock line inputs
- 4-pin Euroblock GPI/remote input
- RJ-45 ethernet
- 8-pin Euroblock outputs
- 12-pin Euroblock GPO/alarm outputs
- RJ-45 Dante
- 1U
- Dimensions (W x H x D): 483 x 45 x 358 mm
- Weight: 7.0 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2024
- Item number570865
- Sales Unit1 piece(s)
- Channels 4
- Output per channel at 100 V 600 W
- Output per channel at 4 Ohms 600 W
- Rack Units 1 U
- DSP / Crossover Yes
- Convection cooling No
- ClassClass D
- Link OutNo
- Output Phoenix ClampsYes
- Temperature controlled fanYes
- Width483 mm
- Depth358 mm
- Height45 mm
- Weight7 kg
