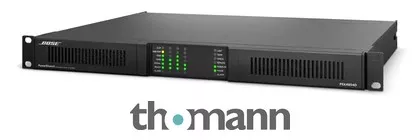

Four-channel installation power amplifier
- Maximum peak power, balanced: 3000 W at 2 ohms and 4 ohms / 2400 W at 8 ohms, 70 V, and 100 V
- Maximum peak power, unbalanced: 3600 W at 2 ohms / 5200 W at 4 ohms / 2600 W at 8 ohms / 4200 W at 70 V / 4400 W at 100 V
- Rated power, unbalanced: 1800 W at 2 ohms / 2600 W at 4 ohms / 1300 W at 8 ohms / 2100 W at 70 V / 2200 W at 100 V
- Frequency response: 20 Hz to 20 kHz (±1,0 dB)
- Class D amplifier
- Dante interface
- Integrated DSP
- Dynamic power‑sharing supports both symmetrical and asymmetrical distribution
- Managed with the Bose ControlSpace Designer app
- Temperature-controlled fan
- 6-pin Euroblock line inputs
- 4-pin Euroblock GPI/remote input
- RJ-45 ethernet
- 8-pin Euroblock outputs
- 12-pin Euroblock GPO/alarm outputs
- RJ-45 Dante
- 1U
- Dimensions (W x H x D): 483 x 45 x 358 mm
- Weight: 7.0 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2025
- Item number570882
- Sales Unit1 piece(s)
- Channels 4
- Output per channel at 100 V 2400 W
- Output per channel at 4 Ohms 1200 W
- Rack Units 1 U
- DSP / Crossover Yes
- Convection cooling No
- ClassClass D
- Link OutNo
- Output Phoenix ClampsYes
- Temperature controlled fanYes
- Width483 mm
- Depth358 mm
- Height45 mm
- Weight7 kg
