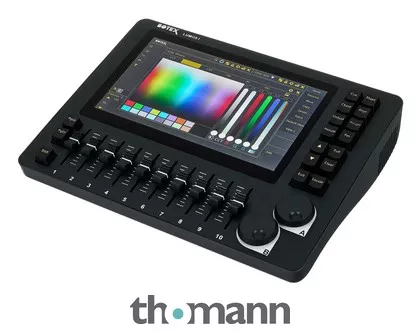

Lighting Control Panel
- Compact DMX console with touchscreen
- User-friendly operation
- 10. 1″ IPS Full HD touchscreen enables quick programming
- 1024 DMX channels
- Ten playback faders with up to 1500 playbacks
- Two high-precision multi-function encoders
- Illuminated 16 function keys
- RDM and Artnet function
- Large fixture library
- Convenient fixture editor
- Control of up to 300 fixtures simultaneously
- Up to 1000 presets and 300 fixture groups
- Chasers can save up to 100 steps
- Built-in RGB&CMY palette, rich shape and colour effects, keyframe shapes
- Easily adjustable
- Pixel Mapping
- Fully customisable user interface
- User profiles can be saved
- Hardware parameters: 4-core ARM CPU, 2 GB RAM, 8 GB storage
- Two DMX outputs
- One RJ45/Artnet
- Two USB ports
- Power connection: AC100 – 240 V, 50 – 60 Hz
- Dimensions (W x L x H) : 34 x 26 x 8 cm
- Weight: 3.6 kg
Contents of delivery:
- Botex LUMOS I
- External power supply unit
- Bag
- Dust cover
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2025
- Item number598130
- Sales Unit1 piece(s)
- Preset Function Yes
- External Storage Yes
- DMX – Universes 2
- max. Channels 1024
- Ethernet Yes
