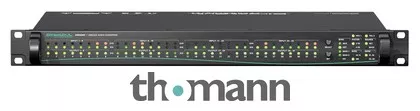

AD/DA Converter
- High-quality AD/DA converter with redundancy management for professional applications
- Analogue inputs: 32 channels via 4x SUBD-25 (balanced)
- Analogue outputs: 32 channels via 4x SUBD-25 (balanced)
- Network: Two RJ45 (1 Gbit/s) for audio networks and 1 x RJ45 (1 Gbit/s) for remote control management
- Word clock input and output: Two coaxial BNC
- Optional MADI ports: Two SFP (empty housing for transceiver modules)
- Audio network options: RAVENNA (128 channels @ 1 FS), Dante (64 channels @1 FS) and SoundGrid (128 channels @ 1 FS)
- Redundant power supply and signal transmission
- Remote control via globcon software
- Dimensions (W × H × D): 483 × 44.5 × 254 mm
- Format: 19″ / 1 U
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2024
- Item number594897
- Sales Unit1 piece(s)
- Amount Of Channels 288
- AD Conversion Yes
- DA Conversion Yes
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor No
- AES/EBU Connector No
- ADAT No
- Word clock Yes
- Number of analog inputs 32
- Number of Analog Outputs 32
- Headphone connection No
