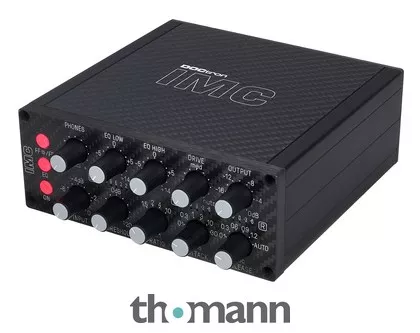

Instant Mastering Chain
- Compact analogue stereo processor for processing sum signals in live and studio applications
- Adjustable input level (0 dB to -10 dB)
- 2-band shelving equaliser (60 Hz and 12 kHz) with +/-14 dB control range and bypass switch
- VCA compressor (THAT) with controls for threshold, ratio (1:1.5 to 1:10), attack and release (with selectable auto mode)
- Compressor sidechain switchable between feed forward (FF) and feed backward (FB)
- Saturation stage with Lundahl transformer and adjustable drive and output level
- Switchable true bypass
- Stereo headphone output with level control: 3.5 mm jack
- Stereo input/output: 6.3 mm jack, balanced
- Sidechain send/return: 6.3 mm jack
- Dynamic range: 108 dB A
- Signal-to-noise ratio: -108 dB A
- Total harmonic distortion (THD): 0.0099%
- Max. output level: +24 dBu
- Solid but lightweight carbon housing
- Dimensions (W x D x H): 146 x 143 x 56 mm
- Weight: 990 g
- Includes external power supply (24 V DC, 1.0 A)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2023
- Item number560701
- Sales Unit1 piece(s)
- Compressor Yes
- Gate No
- Peak Limiter Yes
- 2-Channel Unit Yes
- Attack/Release Adjustable Yes
