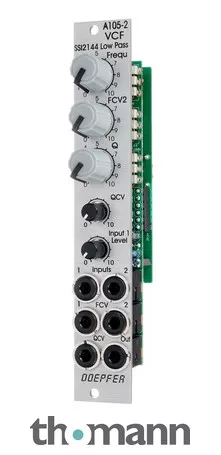

Eurorack Module
- Analogue low-pass filter (24 dB/oct.) based on the SSI2144 filter module
- Control for filter frequency (range: 15 – 15,000 Hz) and resonance
- Two CV inputs for filter frequency (1 x 1 V/octave and 1 x with attenuator) and one CV input with attenuator for resonance
- Two audio inputs (1 x with attenuator) and audio output
- Power requirement: 20mA (+12V) / 20mA (-12V)
- Width: 4 U
- Depth: 45 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2024
- Item number583547
- Sales Unit1 piece(s)
- Width 4 TE / HP
