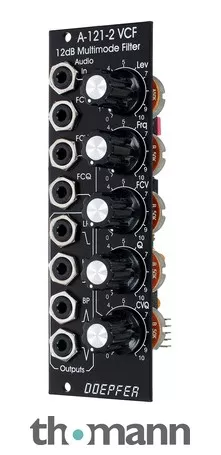

Eurorack Module
- 12 dB multimode filter
- Vintage Edition with black front panel
- Voltage-controlled multi-mode filter with a slope of -12 dB / octave
- 4 Filter outputs with different filter characteristics available at the same time: low-pass, band-pass, high-pass and bandstop (notch)
- Cut-off frequency (cut-off frequency) determines the point at which the respective filter effect occurs
- Resonance (Emphasis) Q is adjustable manually and by control voltage (voltage-controllable resonance)
- Power requirement: +40 mA (+12 V) / -40 mA (-12 V)
- Width: 8 U / 8 HP / 40.3 mm
- Depth: 50 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2022
- Item number547305
- Sales Unit1 piece(s)
- Width 8 TE / HP
