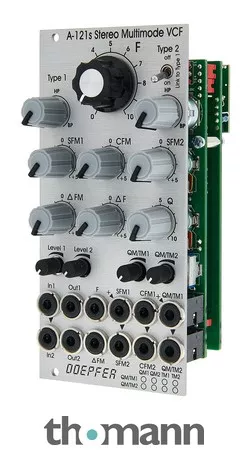

Eurorack Module
- Stereo multimode VCF
- Each filter has continuously adjustable characteristics (from low-pass to notch and high-pass to band-pass) with a switchable link function
- Filter frequency and resonance controls for both filters
- Bipolar delta F control for the difference between the two filter frequencies
- CV inputs for filter frequencies 1 and 2, for both filter frequencies and Delta F, each with a bipolar attenuator
- CV input for each filter with an attenuator for resonance or characteristic, configurable via jumper
- Two audio inputs with level controls and two audio outputs
- Slope: – 12dB/oct.
- Current consumption: 100mA (+12V) / 100mA (-12V)
- Width: 12 TE
- Depth: 45 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2022
- Item number551513
- Sales Unit1 piece(s)
- Width 12 TE / HP
