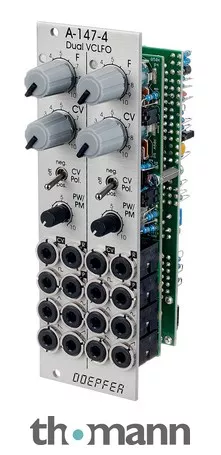

Eurorack Module
- Voltage controlled 2-channel LFO
- Per channel: Controls for LFO frequency, CV attenuator, square wave pulse width, switch for CV polarity
- CV inputs for frequency, pulse width and reset input
- Waveform outputs for square/pulse, triangle, sine, sawtooth and ramp
- Frequency range: 0.007Hz – 1.4kHz (range selectable via jumper)
- Power consumption: 80mA (+12V) / 70mA (-12V)
- Width: 8 U
- Depth: 45 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2023
- Item number568412
- Sales Unit1 piece(s)
- Width 8 TE / HP
