Home » Shop » Pro Audio » Electro-Voice EV TX1122

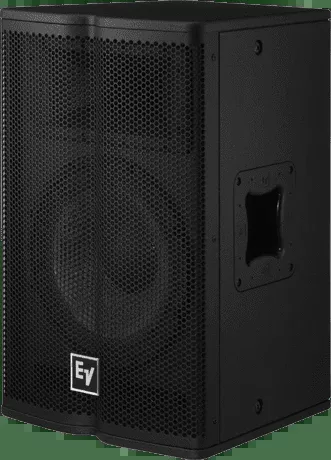

Electro-Voice EV TX1122

Original price was: $569.40.Current price is: $373.44.

Sale!
SKU: TX1122 Category:
Share


TX1122

12″ Passive Loudspeaker

  • High-quality sound at high levels
  • Excellent pattern control for short-to-medium throw
  • Low-distortion SMX2120 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Advanced 4th-order crossover with HF protection
  • 97 dB sensitivity, 130 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six 3/8-inch threaded suspension points
  • Black EVCoat™ finish

Frequency Range (-10 dB) 45 – 20000kHz
Weight Net 43.65lbs (19.8kg)
Depth 22.56″ (573mm)


Width 14.33″ (364mm)
Height 17.32″ (440mm)
Available Color Black
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 50°
Crossover Frequency 1600Hz
Enclosure Material Ply Wood and MDF with EVCOAT
Family Tour X
Flying Yes
Frequency Response (-3 dB) 70 – 20000Hz
HF Transducer 1.25-inch DH3/2010A
Input Connections Parallel Neutrik® NL4
Internal Crossover Yes
LF Transducer 12-inch SMX2121
Max. SPL/1m (calc) 132dB
Minimum Impedance 6.4?
Nominal Impedance (Passive) 8?
Power Rating 2000W
Powered or Passive Passive
Recommended High-Pass Frequency 45Hz
Rotatable Horn No
Sensitivity 1 W/1 m 97dB (1w/1m)
Speaker Type Full-Range
Suspension (6) 3/8-inch threaded inserts
System Power Handling (Continuous/Program/Peak) 500//2000Watts
Woofer Size 12inch
