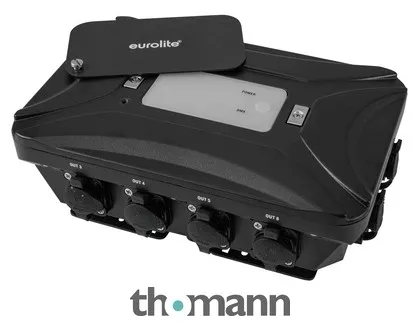

DMX IP Splitter
- 3-pole IP XLR jacks
- DMX distributor for splitting a DMX input signal to eight DMX outputs
- Input and outputs galvanically isolated
- Suitable for outdoor use thanks to IP65 protection rating
- Low-noise operation
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 4 W
- IP protection rating: IP65
- Power connection: Power Twist TR1
- DMX connection: One XLR 3-pin mounting version IP In / eight XLR 3-pin mounting version IP Out
- Mounting system: M10 thread
- Status LEDs for power and DMX
- Material: Aluminium cast
- Dimensions (L x W x H): 22.5 x 15 x 8.5 cm
- Weight: 2.13 kg
- Colour: Black
- Includes bracket for wall mounting and with pressure equalisation membrane
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2025
- Item number604698
- Sales Unit1 piece(s)
- Type Splitter
- Distribution-type 1in8
- Input 3-pole XLR
- 3-pole XLR Outputs Yes
- 5-pole XLR Outputs No
- 19″-capable No
- RDM-compatible No
- WDMX-capable No
