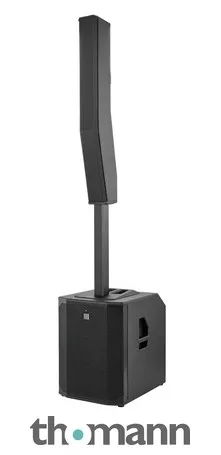

Active Column Speaker System
Consisting of a subwoofer, column array, and distance rod
- Built-in digital 5-channel mixer with LC display, DSP functions (Music, Live, Speech, Club), compressor, talkover and tone control
- High-quality Bluetooth audio streaming from smartphone or tablet
- EV Quick Smart mobile control app
- Remote control for up to six EV systems
- Top section equipped with: 8x 4.7″ drivers
- 15″ subwoofer
- Total power output: 2000 W (peak)
- Frequency range (-10 dB): 35 – 20,000 Hz
- Frequency range (-3 dB): 40 – 18,000 Hz
- Maximum sound pressure level: 133 dB
- Dispersion angle (H x V): 120° x 25º
- Weight of subwoofer: 26.8 kg
- Weight column: 8.7 kg
- Colour: Black
- Includes bag for column speakers
- Optional protective cover for subwoofer (Art. 616158), dolly (Art. 616164), short-distance rod (Art. 616156)
Inputs:
- 2x Mic/Line XLR/6.3 mm jack combo with 48 V phantom power
- 1x Stereo XLR/RCA
- 1x XLR AES/EBU
Outputs:
- 1x XLR Sub Out
- 1 x XLR Mix Out
- 1x XLR AES/EBU Thru
Dimensions:
- Set up (H x W x D): 2259 mm x 450 mm x 607 mm
- Subwoofer: 623 x 450 x 607 mm
- Column speaker: 1090 x 131 x 259 mm
- Distance rod: 745 x 66 x 95 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2025
- Item number616241
- Sales Unit1 piece(s)
- more than 150 people Yes
- more than 300 people No
- Incl. Mixer Yes
- Incl. Subwoofer Yes
- Active Speaker Yes
- Line Array / Column Yes
- Width450 mm
- Depth607 mm
- Power (Manufacturers Specs)2000 W
- Sound Pressure in dB133 dB
- Height623 mm
- Weight35,5 kg
- Number of HT-Speaker8
- Sub Woofer1×15
- HT Speaker in Inch4,7
- Number of Midrange Speaker0
- Speakers (Row)8x 4,7
- Midrange Speaker in InchNo
- Number of Bass Speaker1
- Power (Manufacturer Info)2000 W
- Inputs simultaneously8
- Bass Speaker in Inch15″
- Number of Ways2-Way
- Mic Preamp2
- ColourBlack
- App SupportYes
- Line OutNo
- Bluetooth PlayYes
- Batterie InformationNo
- Housing MaterialWood
- Coverinclusive
- Construction TypeColumn
- Using forPA
- Stand FlangeNo
- FlyableNo
- Analog Inputs3
- Microphone Input2
- Line InputYes
- EQ per ChannelYes
- Master EQYes
- Media PlayerNo
- Voice AssistantNo
- Remote ControlBT
- Wireless Mic Handhleld / HeadsetNo
- EffectYes
- Beam Angle (Hor)120 °
- Vertical Beam Angle40 °
- Frequency Range (-10dB) from35 Hz
- Frequency Range (-3dB) from40 Hz
- Low CutYes
- Ground LiftNo
