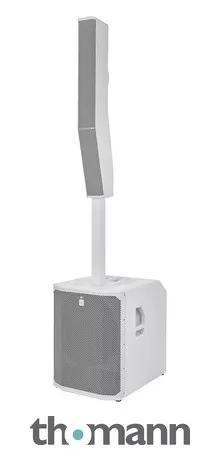

Active Column Speaker System
- Consists of subwoofer, column speaker array and distance rod
- Column speaker equipped with eight 4.7″ drivers
- 18″ subwoofer
- Peak power: 2000 watts
- Frequency range: 28 Hz – 20 kHz (- 10 dB), 35 Hz – 18 kHz (-3 dB)
- Maximum sound pressure level: 133 dB
- Dispersion angle (H x V): 120° x 25°
- Built-in 5-channel mixer
- LC display
- DSP functions (Music, Live, Speech, Club), compressor, talkover, tone control
- High-quality Bluetooth audio streaming from smartphone or tablet
- EV-Quick-Smart mobile control app
- Remote control for up to six EV systems
- Overall dimensions when assembled (H x W x D): 2346 x 510 x 680 mm
- Subwoofer dimensions (H x W x D): 694 x 510 x 680 mm
- Dimensions column (H x W x D): 1090 x 131 x 259 mm
- Dimensions distance rod (H x W x D): 745 x 66 x 95 mm
- Weight of subwoofer: 35.6 kg
- Weight column: 87 kg
- Colour: White
- Includes bag for column speakers
Inputs:
- Two mic/line XLR/6.3 jack combo sockets (48 V phantom power)
- One stereo XLR/RCA
- One XLR AES/EBU
- One AES/EBU Thru
Outputs:
- One XLR Sub Out
- One XLR Mix Out
Suitable accessories not included:
- Protective cover for subwoofer: Art .616159
- Dolly: Art. 616167
- Distance rod: Art. 616156
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2025
- Item number616280
- Sales Unit1 piece(s)
- more than 150 people Yes
- more than 300 people Yes
- Incl. Mixer Yes
- Incl. Subwoofer Yes
- Active Speaker Yes
- Line Array / Column Yes
- Width510 mm
- Power (Manufacturers Specs)2000 W
- Depth680 mm
- Sound Pressure in dB134 dB
- Weight44,4 kg
- Number of HT-Speaker8
- Sub Woofer1x 18
- HT Speaker in Inch4,7
- Speakers (Row)8x 4,7
- Number of Midrange Speaker0
- Midrange Speaker in InchNo
- Number of Bass Speaker1
- Power (Manufacturer Info)2000 W
- Inputs simultaneously5
- Bass Speaker in Inch18″
- Number of Ways2-Way
- Mic Preamp2
- ColourWhite
- App SupportYes
- Line OutNo
- Bluetooth PlayYes
- Batterie InformationNo
- Housing MaterialWood
- Coverinclusive
- Construction TypeColumn
- Using forPA
- Stand FlangeNo
- FlyableNo
- Analog Inputs3
- Microphone Input2
- Line InputYes
- EQ per ChannelYes
- Master EQYes
- Media PlayerNo
- Voice AssistantNo
- Remote ControlBT
- Wireless Mic Handhleld / HeadsetNo
- EffectYes
- Beam Angle (Hor)120 °
- Vertical Beam Angle25 °
- Frequency Range (-10dB) from28 Hz
- Frequency Range (-3dB) from35 Hz
- Low CutYes
- Ground LiftNo
