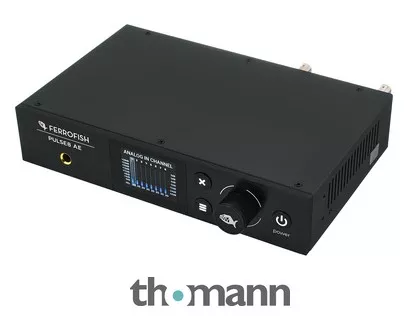

Compact Eight Channel AD/DA converter
- 32 Bit / 192 KHz
- 16×16 ADAT channels at 48 kHz
- SMUX for higher sampling rates (up to 96 kHz with eight channels via SMUX/2 or 48 kHz with 16 channels)
- Colour LED display with level meter for inputs and outputs
- Expandable with optional DSP stick
- Eight balanced line inputs and outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- Two ADAT inputs and outputs
- Word clock input and output: BNC
- MIDI input and output
- USB-C connection for remote functions and firmware updates
- Dimensions (W x H x D, without controls): 220 x 44 x 130 mm
- Weight: 1 kg
- Includes external power supply
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2025
- Item number608226
- Sales Unit1 piece(s)
- Amount Of Channels 8
- AD Conversion Yes
- DA Conversion Yes
- Max. Resolution Rate in Bits 32 bit
- Max. Sampling Rate in kHz 96 kHz
- S/PDIF Connecor No
- AES/EBU Connector No
- ADAT Yes
- Word clock Yes
- Number of analog inputs 8
- Number of Analog Outputs 8
- Headphone connection Yes
- Special FeaturesDisplay, MIDI, optional DSP Extension
