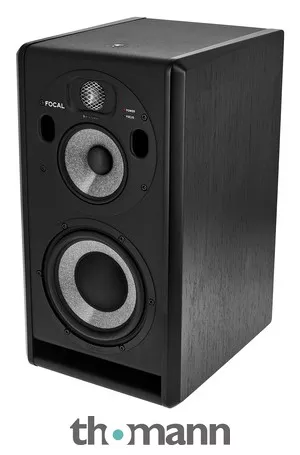

Active 3-Way Bass Reflex Studio Monitor
- Equipped with: 8‘ woofer (W sandwich composite cone) and 5’ midrange driver (TMD – Tuned Mass Damper) and 1.5’ beryllium tweeter with waveguide
- Switchable focus mode: 1-way full-range monitor (midrange) or 2-way monitor (midrange and tweeter)
- Frequency range (-3 dB): 35 Hz – 40,000 Hz in 3-way mode, 100 Hz – 15,000 Hz in Focus Mode 1, 80 Hz – 40,00 Hz in Focus Mode 2
- Maximum SPL (50-10,000 Hz, free field @ 1m): 115 dB
- Amplifier power (RMS): 2x 100 W (woofer & midrange) + 50 W (tweeter)
- Adjustable high-pass filter
- Low- und High-Shelving-EQ und Low-Mid-EQ: 160 Hz
- Switchable stand-by function
- Adjustable input sensitivity: +4 dBu / -10 dBV
- XLR Input
- Focus input and output: 6.3 mm jack
- MDF housing with veneered side panels in black
- Dimensions: (H x W x D) 537 x 292 x 367 mm
- Weight: 25 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2025
- Item number608718
- Sales Unit1 piece(s)
- Woofer Size Class 8″
- Number of Ways 3
- Speaker Housing – Woofer System Bass reflex
- Coaxial System No
- Power per Unit 250 W
- Frequency range 35 Hz – 40000 Hz
- Analogue XLR Input Yes
- Analogue Input(Jack) No
- Analogue Input (Mini Jack) No
- Analogue Input (RCA) No
- Digital input No
- Manual Sound Adjustment Yes
- DSP Room Correction none
- Woofer8″
- Mid-Range Driver5″
- Tweeter1.5″
- Height537 mm
- Width292 mm
- Depth367 mm
- Weight25 kg
