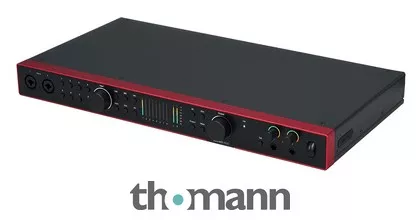

18-Channel USB 2.0 Audio Interface with USB-C Connector
- 24-bit / 192kHz
- 122 dB Dynamic range
- Eight Scarlett microphone preamps with 69 dB gain
- +48 V phantom power
- 18 physical inputs and outputs – can be used simultaneously 20 x 24 incl. loopback
- Switchable Air mode with Presence and Harmonic Drive
- Auto-gain and clip-safe function
- Dynamic level display for inputs and outputs
- Loopback
- Built-in talkback microphone
- Focusrite Control 2 software and mobile app
- Design: 19″ / 1U
- Dimensions (W x H x D): 482.6 x 46.6 x 259.8 mm
- Weight: 3.304 kg
- Includes power supply, USB cable (Type C to A), Steinberg Cubase LE, Ableton Live Lite, Pro Tools Intro+ and the Hitmaker Expansion Software Bundle (3-month Splice Sounds membership and a plugin bundle for songwriting, mixing and mastering, as well as the Avid Complete Plugin Bundle)
Connectors:
- Combo microphone / line inputs: Eight XLR / 6.3 mm jack, including two instrument inputs at the front
- Line outputs: Ten 6.3 mm jacks
- Two stereo headphone outputs: 6.3 mm jack
- S/PDIF input and output: coaxial
- Two ADAT inputs and outputs (16 channels at 44.1/48 kHz or up to eight channels at 96 kHz)
- Wordclock BNC
- MIDI In & Out
- USB-C for computer connection
- USB-C input for power supply (5 V DC)
Hitmaker Expansion Plugins:
- Celemony Melodyne Essential
- Softube Flow Guitar Essentials
- Native Instruments MASSIVE
- Sonnox VoxDoubler
- Brainworx bx_console Focusrite SC
- Focusrite Red 2 & 3 Plugin Suite
- XLN Audio Addictive Keys
- XLN Audio Addictive Drums 2: Studio Rock
- Relab LX480 Essentials, FAST Balancer
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2024
- Item number596531
- Sales Unit1 piece(s)
- Recording / Playback Channels 18×20
- Number of Mic Inputs 8
- Number of Line Inputs 8
- Instrument Inputs 2
- Number of Line Outs 10
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 2
- Number of ADAT Connectors 4
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface Yes
- Word Clock 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 442 mm
- Depth 259,73 mm
- Height 46,6 mm
- Connection Format USB port Type C
- Included in deliveryPower Supply, Power Cable, USB-C Cable, USB-A to USB-C Adaptor, Rack Mount Accessories
- Zero latency monitoringYes
