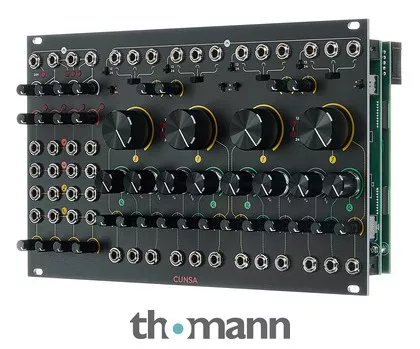

Eurorack Module
- Analogue 4-channel multimode filter
- Per filter: Adjustable cutoff, resonance and saturation (each with CV input and bipolar attenuator), input level, selectable slope (12dB/24dB), 1V/oct. CV input, ping input with adjustable decay phase and outputs for lowpass, bandpass and highpass
- Mixer section for the unprocessed input signal and 4 selectable filter characteristics (low-pass, band-pass, high-pass)
- Current consumption: 330mA (+12V) / 330mA (-12V)
- Width: 42 HP
- Depth: 38 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2023
- Item number567793
- Sales Unit1 piece(s)
- Width 42 TE / HP
