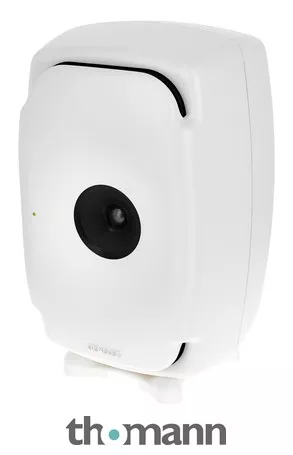

Active 3-Way Studio Monitor with Coax Driver
- Midrange and tweeter are on the same acoustic axis
- Horizontal and vertical operation possible
- DSP filter for room adjustment
- Frequency range: 30 – 43,000 Hz +/- 6dB
- Frequency response: 36 – 20,000 Hz +/-1,5 dB
- Max. SPL: 118 dB SPL (1 m)
- Speakers: 2 oval woofers (263 x 137 mm), 5″ midrange and 1″ coaxial tweeter
- Power amplifier output: 700 W woofer, 150 W midrange, 150 W tweeter (Class-D)
- SAM (Smart Active Monitor) DSP system for automatic frequency calibration to adapt the monitor to existing acoustic room conditions via optional Genelec GLM Kit calibration system or Genelec 9320 Reference Monitor Controller (not included, article numbers: 357055 576655)
- Analogue input: XLR
- AES/EBU input and output: XLR, 2x RJ45
- Dimensions (H x W x D with Iso-Pod): 593 x 357 x 347 mm
- Weight: 31.9 kg
- Colour: White
- Includes Iso-Pod, power supply cable and 5 m RJ45 cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number577266
- Sales Unit1 piece(s)
- Woofer Size Class 10″
- Number of Ways 3
- Speaker Housing – Woofer System Bass reflex
- Coaxial System Yes
- Power per Unit 1000 W
- Frequency range 30 Hz – 43000 Hz
- Analogue XLR Input Yes
- Analogue Input(Jack) No
- Analogue Input (Mini Jack) No
- Analogue Input (RCA) No
- Digital input Yes
- Manual Sound Adjustment Yes
- DSP Room Correction optional with Genelec GLM-System
- Woofer2x 5,4“x10,4“
- Mid-Range Driver5″
- Tweeter1″
- Height593 mm
- Width357 mm
- Depth347 mm
- Weight31,9 kg
- Magnetic ShieldingYes
