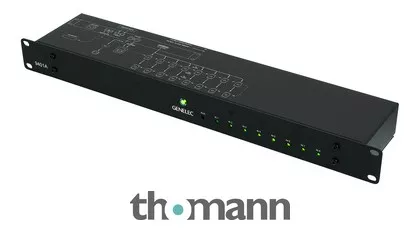

System Management Device for Audio-over-IP networks
- Converts AoIP streams (ST2110, AES67 and Ravenna) to AES/EBU
- 16 Digital audio channels via Sub-DB25 connection, which can be fed into Genelec SAM monitoring systems
- Dedicated subwoofer output
- Stereo monitoring output
- Supported sample rates: 44.1 to 192 kHz, 16 / 24 / 32-bit
- 2 Connections RJ45 AES67 ST2110
- 2 Connections RJ45 GLM network
- AES output Sub-D25
- 2 XLR connections
- Subwoofer link / AUX stereo output
- Format: 19″ 1 U
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2024
- Item number595241
- Sales Unit1 piece(s)
- Amount Of Channels 16
- AD Conversion No
- DA Conversion Yes
- Max. Resolution Rate in Bits 32 bit
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor No
- AES/EBU Connector Yes
- ADAT No
- Word clock No
- Number of analog inputs 0
- Number of Analog Outputs 2
- Headphone connection No
- Special Features2x RJ45 AES67 ST2110, 2x RJ45 GLM Network
