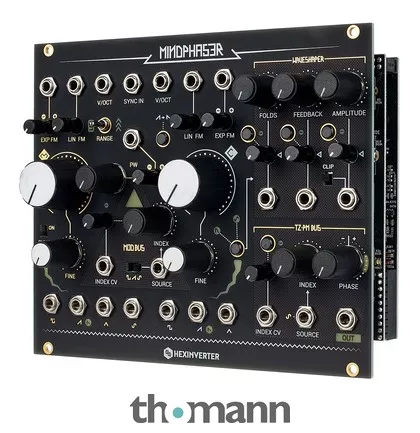

Eurorack Module
- Complex dual VCO with through-zero phase modulation and waveshaper
- Main oscillator with controls for coarse and fine tuning, pitch CV input, CV inputs for linear and exponential FM (each with attenuator), sync input and outputs for square, sawtooth and triangle
- Modulation oscillator with control for coarse and fine tuning, pitch CV input, CV inputs for linear and exponential FM (each with attenuator), adjustable pulse width (with CV input and bipolar attenuator), switchable LFO mode, switchable hard sync and outputs for square/pulse, sawtooth, triangle and sine wave
- FM modulation bus with adjustable index, index CV input (with attenuator), selectable modulation waveform and input for external modulation signals
- Through-zero phase modulation with adjustable phase, adjustable index, index CV input (with attenuator) and input for external modulation signals
- Waveshaper section with controls for fold, feedback and amplitude, each with CV input and attenuator.
- Power consumption: 188mA (+12V) / 107mA (-12V)
- Width: 30 U
- Depth: 24 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number577475
- Sales Unit1 piece(s)
- Analogue Yes
- Digital No
- Width 30 TE / HP
