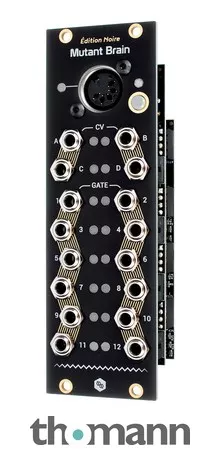

Eurorack Module
- Multi-channel MIDI to CV/Gate interface
- MIDI input (5-pin DIN)
- 4 CV outputs (0V to +8V)
- 12 Gate/trigger outputs (0V to +5V)
- All outputs are freely programmable via SysEx and a web editor
- CV outputs programmable for pitch (V/Oct, Hz/Volt, 1.2V/Oct), MIDI CC, pitch bend, aftertouch or fixed voltage
- Gate/trigger outputs programmable for clock (incl. partial values and DIN sync), transport control, note gate (with threshold), trigger with adjustable length and offset
- Status LEDs for all inputs and outputs
- Power consumption: 19mA (+12V) / 4mA (-12V)
- Width: 8 U
- Depth: 38 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2023
- Item number559947
- Sales Unit1 piece(s)
- Width 8 TE / HP
