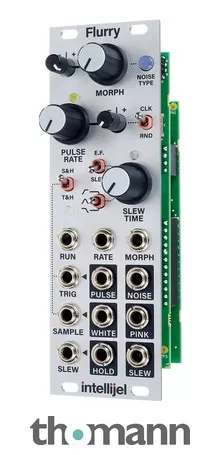

Eurorack Module
- Multifunctional module for noise, clock and random signals
- Internal square wave generator (switchable between clock or random) with rate control, CV input and bipolar attenuator
- Analogue sample & hold / track & hold stage
- Analogue slew limiter with adjustable control time with CV input and 3 operating modes (reaction to rising signal edge, falling signal edge or both)
- Slew limiter switchable to envelope follower
- Digital noise generator with 16 noise types and two adjustable parameters
- Adjustable morph parameter with CV input and bipolar attenuator
- Inputs for external clock signal, sample & hold stage and slew limiter
- Outputs for white, pink and digital noise
- Outputs for pulse, hold and slew limiter
- Current consumption: 116mA (+12V) / 30mA (-12V)
- Width: 8 HP
- Depth: 34 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number563746
- Sales Unit1 piece(s)
- Width 8 TE / HP
- CV-Editor/VC-ProcessorYes
- ToolsYes
