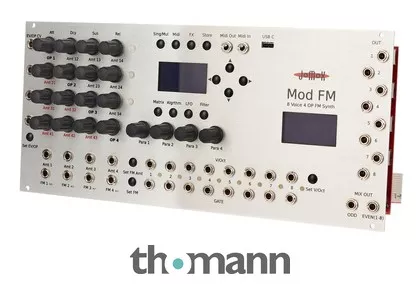

Eurorack Module
- 8 Voice FM-Synthesizer
- Per voice: 4 operators and 26 algorithms, ADSR envelope per operator, 2x LFO/VCO, 2 analog filters and analog VCA
- 64 LFO waveforms
- 24dB low-pass filter and 12dB multimode filter (low-pass, band-pass, high-pass) with ADSR envelope
- Metal noise sound source can be mixed in
- Onboard effects: reverb and x2 delay
- 8-Voice single mode or 8-voice multi mode selectable
- CV/gate inputs for each voice
- 12 CV inputs for external modulation sources
- 8 Voice ouputs and 2 mix outputs
- MIDI in/out (3.5mm TRS jack)
- USB-C port for USB-MIDI
- Convenient operation via 20 encoders and two displays
- Memory locations for 128 single presets and 128 multi presets
- Power consumption: 370mA (+12V) / 170mA (-12V)
- Width: 56 U
- Depth: 40 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number577379
- Sales Unit1 piece(s)
- Width 56 TE / HP
