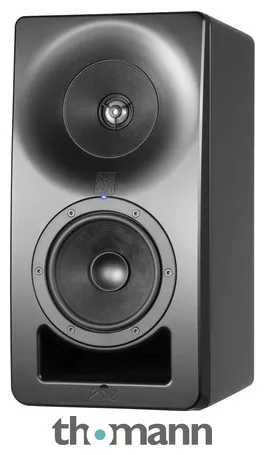

Active 3-Way Studio Monitor
- Equipped with: 5″ woofer, 4″ midrange driver and 1″ metal dome tweeter
- Maximum sound pressure level: 117 dB
- Frequency range: 47 – 21,000 Hz (+/-3 dB)
- Amplifier: 150 W, class D
- Crossover LF to midrange: 280 Hz
- Mid-range HF crossover: 2800 Hz
- THD of the speaker: (90 dB SPL at 1 metre) <0.75% from 100-450 Hz, <0.5% above 450 Hz
- App control for custom EQ, delay and trim
- EQs: Eight bands
- Assignable parametric, high/low shelf or high/low pass
- Delay: Adjustable up to 10 ms
- Trim: -12 dB bis +6 dB
- XLR/jack combination input (analogue)
- AES/EBU via BNC
- RJ45 connection for control unit
- USB-A for calibration profiles
- Outputs: AES/EBU via BNC thru
- Dimensions: 396 x 248 x 200 mm
- Weight: 9.5 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2026
- Item number603159
- Sales Unit1 piece(s)
- Woofer Size Class 5″
- Number of Ways 3
- Speaker Housing – Woofer System Bass reflex
- Coaxial System Yes
- Power per Unit 150 W
- Frequency range 47 Hz – 21000 Hz
- Analogue XLR Input Yes
- Analogue Input(Jack) Yes
- Analogue Input (Mini Jack) No
- Analogue Input (RCA) No
- Digital input Yes
- Manual Sound Adjustment Yes
- DSP Room Correction none
- Woofer5″
- Mid-Range Driver4″
- Tweeter1″
- Height396 mm
- Width200 mm
- Depth248 mm
- Weight9,5 kg
