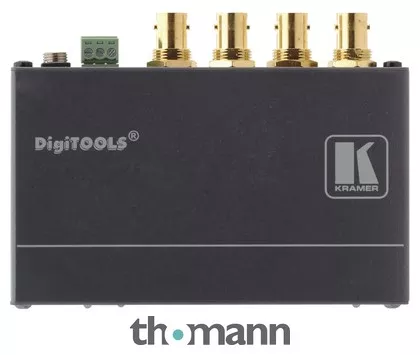

Standby Switcher
- 2 x 1:2 High-performance automatic switcher for SDI signals up to 3G HD-SDI
- Max. data rate: 3 GBit/s
- Multi-standard compatible: SDI (SMPTE 259M and 344M)
- HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
- Compatible with / support for data rates of 270 MBit/s, 1483.5 MBit/s, 1485 MBit/s and 2970 MBit/s
- HDTV compatible
- Contact closure remote control for forced operation and flexible sync detection along with reconstruction circuitry
Technical Data:
- Inputs: 2x 3G HD-SDI with BNC sockets
- Outputs: x 3G HD-SDI with BNC sockets
- Max. output level: 800 mW at 75 Ohm
- Max. data rate: 2.97 GBit/s
- Power supply: 5 V, 400 mA
- Dimensions: 12 x 7.15 x 2.44 cm
- Weight: 0.2 kg
- Included in delivery: Power supply unit, mounting bracket
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2025
- Item number588142
- Sales Unit1 piece(s)
- Splitter No
- Matrix No
- Scaler No
