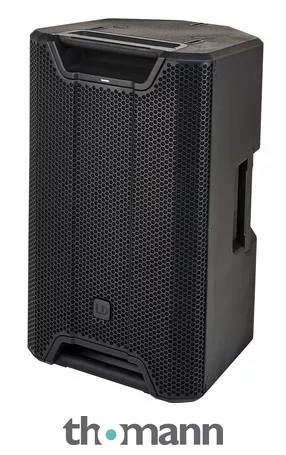

Active 12 Way Full-Range Speaker
- Vertical and horizontal application thanks to coaxial design with rotatable, BEM-optimised CD horn with 800 Hz crossover frequency
- SysCore DSP with FIR/IIR filters and crossover for distortion-free sound
- Class D amplifier
- Speaker configuration: 12″ woofer and 3″ titanium cone high-frequency driver
- Power: 1000 W RMS / 2000 W Peak
- Frequency range: 53 – 20.000 Hz
- MAx. SPL: 133 dB
- Dispersion pattern (H x V): 90° x 50°
- Monitor angle: 55°
- Bluetooth 5.1 and stereo streaming (TWS) with two ICOA PROs
- Free app for remote customisation via smartphone and tablet (iOS and Android)
- Front-LED display
- Protective functions: Multi-band limiter, short circuit, overheating, direct current
- 4 Handles
- 35 mm pole mount (0°, 5° tilt angle)
- 6x M10 rigging points
- Mic/Line input: 2 x XLR Combo
- Mix Out output: XLR 3-pin male
- Dimensions (W x H x D): 376 x 628 x 394 mm
- Weight: 23 kg
- Colour: Black
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2025
- Item number614508
- Sales Unit1 piece(s)
- Power (Manufacturers Specs) 2000 W
- Bass Speaker in Inch 12″
- Number of Ways 2-Way
- Colour Black
- Weight 23,1 kg
- Housing Material Plastic
- Analog Inputs 2
- Microphone Input 2
- Line Out XLR
- Media Player BT
- Remote Control BT
- Effects No
- Low Cut No
- Monitor Angle Yes
- RMS Power1000 W
- Width376 mm
- Depth394 mm
- Sound Pressure in dB133 dB
- Height628 mm
- Number of HT Speaker1
- Number of HT Speakers1
- Number of HT-Speaker1
- HT Speaker in Inch3
- Number of Midrange Speaker0
- Midrange Speaker in Inchwithout
- Number of Bass Speaker1
- Number of Bass Speakers1
- BatteryNo
- Stand Flange35 mm
- ConstructionStandard
- FlyableM10
- Construction TypeStandard
- Using forPA
- Mounting PointM10
- Line InputYes
- Main EQYes
- Master EQYes
- True Wireless StereoYes
- Voice AssistantNo
- Horizontal Beam Angle90 °
- Vertical Beam Angle50 °
- Handheld / HeadsetNo
- Wireless Mic Handhleld / HeadsetNo
- Frequency Range (-10dB) from53 Hz
- Frequency Range (-10dB) to20000 Hz
- Beam Angle (Hor)90 °
