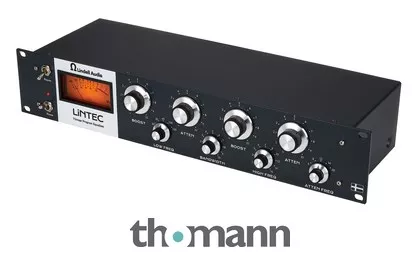

1 Band Equaliser
- Reinterpretation of a classic EQ
- Solid state design for faster transients and less noise
- OPA 1731 operational amplifier
- 5-Stage switchable LF EQ with boost and attenuation: 20, 30, 60, 100, 150 Hz (+/- 10%)
- 11-Stage switchable HF EQ with boost and attenuation: 1, 1.5, 2, 3, 4, 5, 6, 10, 12, 14 and 16 kHz (+/- 10%)
- 5-Stage switchable HF EQ attenuation: 4, 8, 12, 16 and 20kHz (+/- 10%)
- Adjustable bandwidth (Q)
- Gridded potentiometers
- Gain: up to 40db (± 1db)
- 6.3 mm jack line input (balanced)
- 6.3 mm jack line output (balanced)
- Adjustable output level for stereo operation of two devices
- VU meter calibration
- Vintage-style VU meter
- Bypass switch
- On/Off switch
- Steel housing
- Voltage: 115 / 230VAC (switchable at the rear)
- Type: 19″ 2 U
- Dimensions (W x H x D): 438 x 88 x 250 mm
- Weight: 3.5 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2024
- Item number590183
- Sales Unit1 piece(s)
- Channels 1
- Frequency Bands 2
- Tube(s) No
- Height units 2 U
- Connectors Jack
