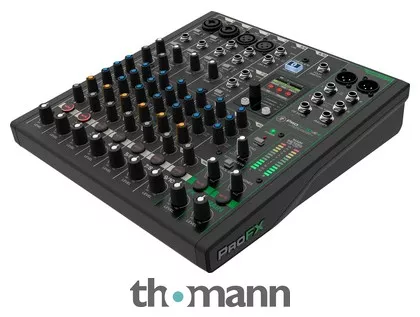

10 channel mixer with bidirectional Bluetooth
- 2×4 USB-C audio interface
- Recording modes: Standard, Loopback and Interface
- GigFX effects unit with 24 effects with their own EQ, editable and storable via full-colour display
- 4 Onyx microphone preamps
- 4 microphone inputs with 3-band EQ (XLR and XLR combo)
- 8 instrument/stereo inputs (6.3 mm jack or XLR combo)
- Stereo input: 3.5 mm stereo jack
- Headphone out with separate level and blend controls
- 100 Hz low-cut filter
- 2 Hi-Z switches
- 48 V phantom power
- Full colour LCD screen
- Dimensions (W x H x D): 272 x 84 x 302 mm
- Weight: 2.2 kg
- Includes Waveform OEM recording software
- Suitable bag: Art. 493959 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2024
- Item number583691
- Sales Unit1 piece(s)
- Simultaneous channels 7
- Mic-In 4
- Mono Line-in 4
- Stereo-In 3
- Hi-Z Input 2
- Phantom Power 48 V
- Master Out XLR
- Aux Ways 1
- max. Pre Aux Channels 0
- PC Interface USB-C
- Audio Interface Input 4
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record USB
- Rec Out (Analog) No
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric No
- Compressor Yes
- Panorama Yes
- PFL No
- FX Processor 1
- USB Playback No
- Bluetooth Playback Yes
- Lamp connection No
- Footswitch Switch
- Matrixmixer No
- Bag 473654
- Zones 0
- 19″ Rackmount No
- Width272 mm
- Depth302 mm
- Height84 mm
- Weight2,2 kg
- Parallel usable Channels7
- Mic Ins4
- Mono Line Ins4
- Stereo Ins3
- Number of Pre Aux max.0
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayYes
- Lamp ConnectorNo
- Foot SwitchSwitch
- RackmountNo
