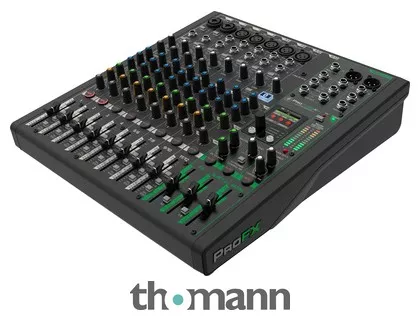

12 channel mixer with bidirectional Bluetooth
- 2×4 USB-C audio interface
- Recording modes: Standard, Loopback and Interface
- GigFX effects unit with 24 effects with their own EQ, editable and storable via full-colour display
- 7 Onyx microphone preamps
- 7 microphone inputs with 3-band EQ (XLR and XLR combo)
- 10 instrument/stereo line inputs (6.3 mm jacks or as part of the XLR combo jacks)
- 1 stereo input: 3.5 mm stereo jack
- Headphone output with separate level & blend controls
- 100 Hz low-cut filter
- 2 x Hi-Z switches
- 48 V phantom power
- Full colour LCD screen
- Dimensions (W x H x D): 330 x 101 x 376 mm
- Weight: 3.6 kg
- Includes Waveform OEM recording software
- Suitable bag: Art. 489621 (not included)
- Suitable rack mounts: Art. 473651 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2024
- Item number583699
- Sales Unit1 piece(s)
- Simultaneous channels 8
- Mic-In 7
- Mono Line-in 5
- Stereo-In 4
- Hi-Z Input 2
- Phantom Power 48 V
- Master Out XLR
- Aux Ways 2
- max. Pre Aux Channels 1
- PC Interface USB-C
- Audio Interface Input 4
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record USB
- Rec Out (Analog) No
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric No
- Compressor Yes
- Panorama Yes
- PFL Yes
- FX Processor 1
- USB Playback No
- Bluetooth Playback Yes
- Lamp connection No
- Footswitch Switch
- Matrixmixer No
- Bag 473655
- Zones 0
- 19″ Rackmount Optional
- Width330 mm
- Depth376 mm
- Height102 mm
- Weight3,6 kg
- Parallel usable Channels8
- Mic Ins7
- Mono Line Ins5
- Stereo Ins4
- Number of Pre Aux max.1
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayYes
- Lamp ConnectorNo
- Foot SwitchSwitch
- Rackmount473651
