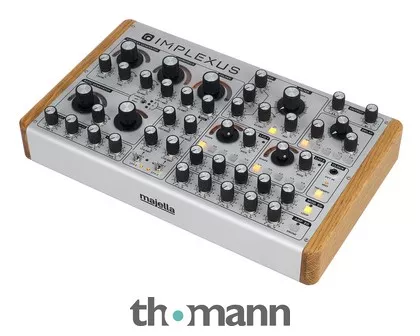

Monophonic Desktop Synthesiser
- Extensive analogue oscillator section consisting of a complex generator with waveshaper (crossfades square wave to sine to sawtooth), wavefolder and a basic generator for modulation
- Basic generator with square, sine and sawtooth waveforms
- Broad and fine tuning adjustable for both oscillators and integrated tuner
- Complex Generator can be modulated by the Basic Generator, envelopes and LFOs
- Mixer for both oscillators and sub-oscillator
- Analogue filter (12dB/oct.) with adjustable resonance and switchable low-pass/high-pass characteristic
- 2 Digital LFOs (range: 0.01Hz – 100Hz), each with 5 waveforms (square, sine, ramp, sawtooth and random) and synchronisable to all clock sources
- 2 Analogue ADSR envelopes with adjustable attack sensitivity
- Synchronisable digital delay
- Balanced stereo output: 2x 6.3 mm TRS
- Stereo headphones output 6.3 mm TRS
- MIDI In/Thru: 5-pin DIN
- USB-B port
- 7 Inputs and 3 outputs (3.5 mm jack) for CV, gate and audio signals for connection to modular systems and other synthesisers
- Dimensions (W x D x H): 345 x 206 x 75 mm
- Weight: 3 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2024
- Item number583402
- Sales Unit1 piece(s)
- Design Desktop
- Polyphony 1
- Sound Generation Digital Analog Hybrid
- Storage Medium None
- USB-port Yes
- Effects Yes
- Arpeggiator No
- Number of Analog Outputs 2
- Digital Output No
- Display No
- Optional ExpansionsN/A
- Special FeaturesN/A
