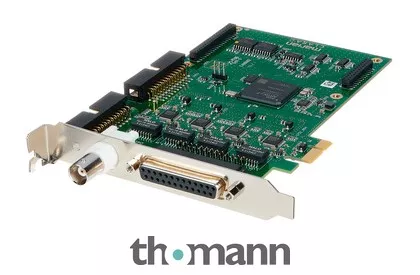

PCIe AES Audio Interface
- 24 bit / 192 kHz
- 64 Channel DSP mixer with EQ functions
- Cascadable via TDM SyncBus
- Switchable input SRCs with 144 dB dynamic range
- Ultra low jitter <1 ns
- ASIO 2.2, WDM Kernel Streaming, MME, DirectSound
- 64 Individually configurable DSP channels: Input, TDM and play signals
- 4 AES/EBU inputs and outputs (16 channels)
- Word clock input BNC
Supported operating systems:
- Windows 7 (32 / 64 bit)
- Windows 8 (32 / 64 bit)
- Windows Server
- Windows 10 (32 / 64 bit)
- Windows 11
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2023
- Item number560611
- Sales Unit1 piece(s)
- Converter 24 bit/192 kHz
- Microphone Inputs 0
- Phantom power No
- Number of instrument inputs 0
- Line Inputs 0
- Digital Inputs AES
- MIDI interface No
- SYNC Yes
- Analogue Outputs 0
- Digital Outputs AES
- Headphone jack No
- Zero latency monitoring Yes
