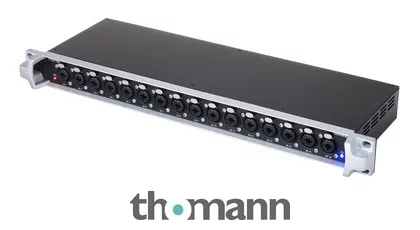

StageCONNECT Interface
- With 16 analogue inputs and Ultranet connectivity
- Up to 32 signals can be transmitted with StageCONNECT via one XLR cable (110 Ohm, max. 40 metres)
- Latency under 1 ms
- 16 Balanced XLR line inputs
- 2 StageCONNECT I/O (slave & master)
- 2 Ultranet outputs
- 1 USB port
- Can be powered via supplied mains adapter (12V DC/2.5A) or 12V phantom power
- Dimensions (W x D x H): 483 x 169 x 49 mm
- Weight: 2.2 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2022
- Item number545087
- Sales Unit1 piece(s)
- Component type StageConnect Interface
- Width483 mm
- Depth in mm169 mm
- Height49 mm
- Weight2,2 kg
- Mounting Height1 U
- 19″ RackkitYes
- Input Channels16
- Output Channels0
- Digital Inputs0
- Digital Outputs16
