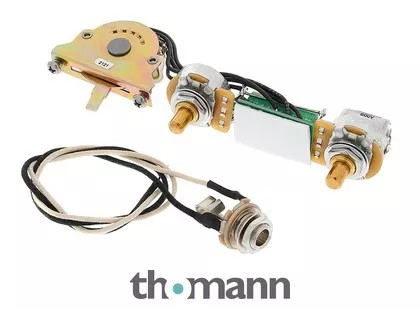

Electronics Replacement Set for Electric Guitar
- For T-Style models
- Hand-wired electronics kit with highest quality components, providing a significant improvement over standard electronics
- Solderless plug-in wire connector for quick installation and easy pickup changing
- Switch positions: 1: bridge, 2: bridge and neck (parallel = standard), 3: neck, 4: neck and bridge (serial = fat humbucker tone)
- Made in USA
Delivery contents:
- Volume control: 1x CTS 250 kOhm, Vintage Audio Taper (30%).
- Tone control: 1x CTS 250 kOhm, Vintage Audio Taper (30%)
- Thread length: 9.5 mm
- Smooth axle (solid shaft)
- 1 .047µF capacitor
- 1 Oak Grigsby 4-Way lever switch
- 1 Switchcraft 1/4″ mono jack socket
Note: The 4-way modification requires a separate wire from the cover of the neck pickup (if it has a cover) to the shield; if you do not have this wire, you can cut off the connection between the cover and the eyelet and solder a separate wire to the cover.
3030-Day Money-Back Guarantee
- Available sinceJanuary 2023
- Item number556711
- Sales Unit1 piece(s)
- Design Prewired Harness/Wiring Kit
- Resistance Value 250 kOhms
- Characteristic Curve Logarithmic
- Thread Length in mm 9,5 mm
- Tandem Poti No
- Push/Push No
- Solderless Yes
- shaft type Smooth
- Part TypeWiring Kit
- TypeSwitcher
- ColourSilver
